| Extruded Fittings |
Oilfield & Pipeline Catalog |
Full Encirclement Saddles |
Weldfit 's integrally reinforced crosses and tees are made to order.
They result in a more compact flow system. The elimination of girth welds between outlets provides lower costs. They
can be manufactured with design specs of either MSS or ASTM codes. Sizes range up to 48 inches and wall thickness up to
4 inches.
|
|
Oilfield
|
Pipeline
|
Weldfit 's Full Encirclement Saddles for the reinforcement of branch
connections are manufactured to customer application specifications. Several sections of ASME B31 code require this
type of reinforcement when branch pipe diameter is greater than 50% of the line pipe diameter. Sizes range up to 60
inches.
|
|
|
|
|
Sureloc Fittings
|
|
|
Hot Tap Tees
|

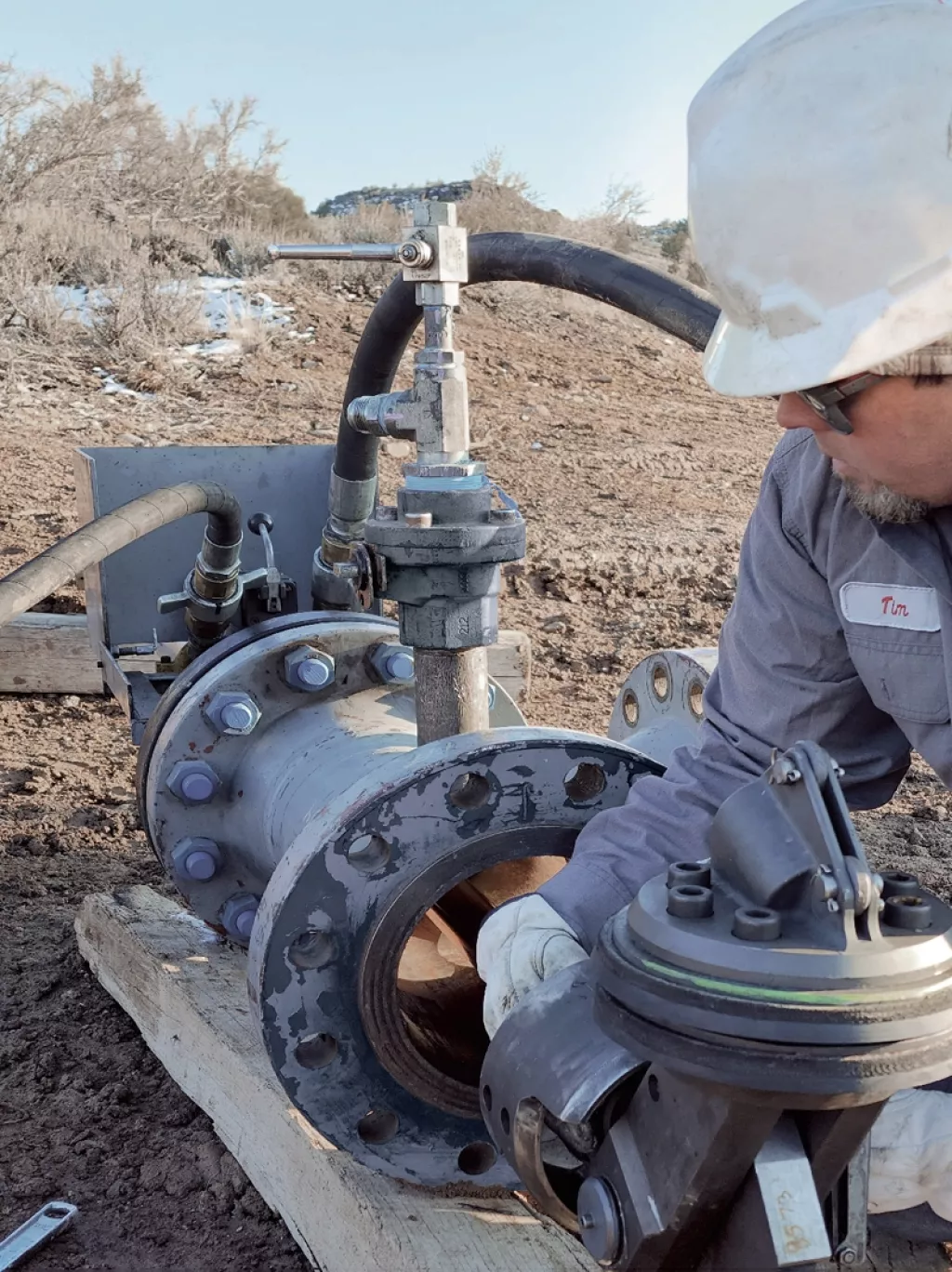

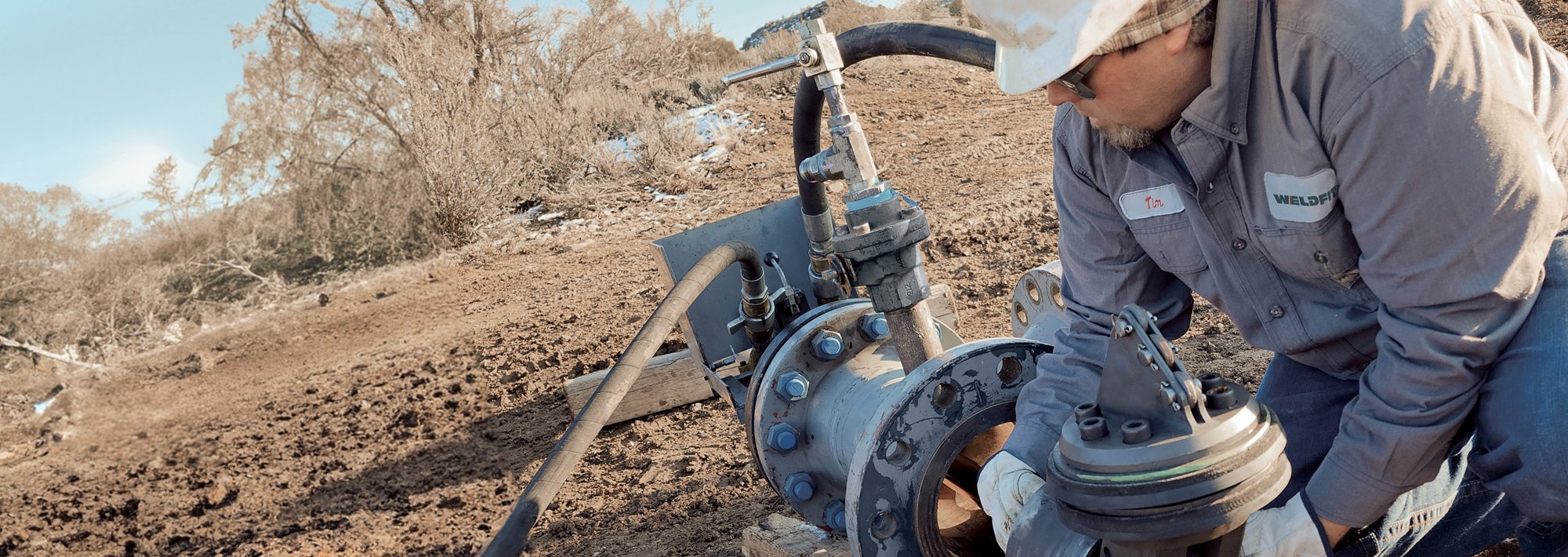

Weldfit 's SureLoc fittings, SureLoc flanges,
plugs, and bar plugs are manufactured to our exacting standards. These devices are utilized in
Hot Tap or Line Stop operations. We also have extensive experience in the supply of NACE
materials and HIC tested fittings.
|
|
Weldfit 's forged or fabricated Hot Tap Tees can be provided in our
patented SureLoc brand or standard API fittings, flanges, plugs, or bar plugs. In either system these units are fully
designed to withstand the installation loads during this operation. Ratings up to 2500#.
|
|
|
|
Petrochemical
|
Specialty Fittings
|
|
|
Extruded Headers
|
Manifolds
|
Specialty Fittings
|

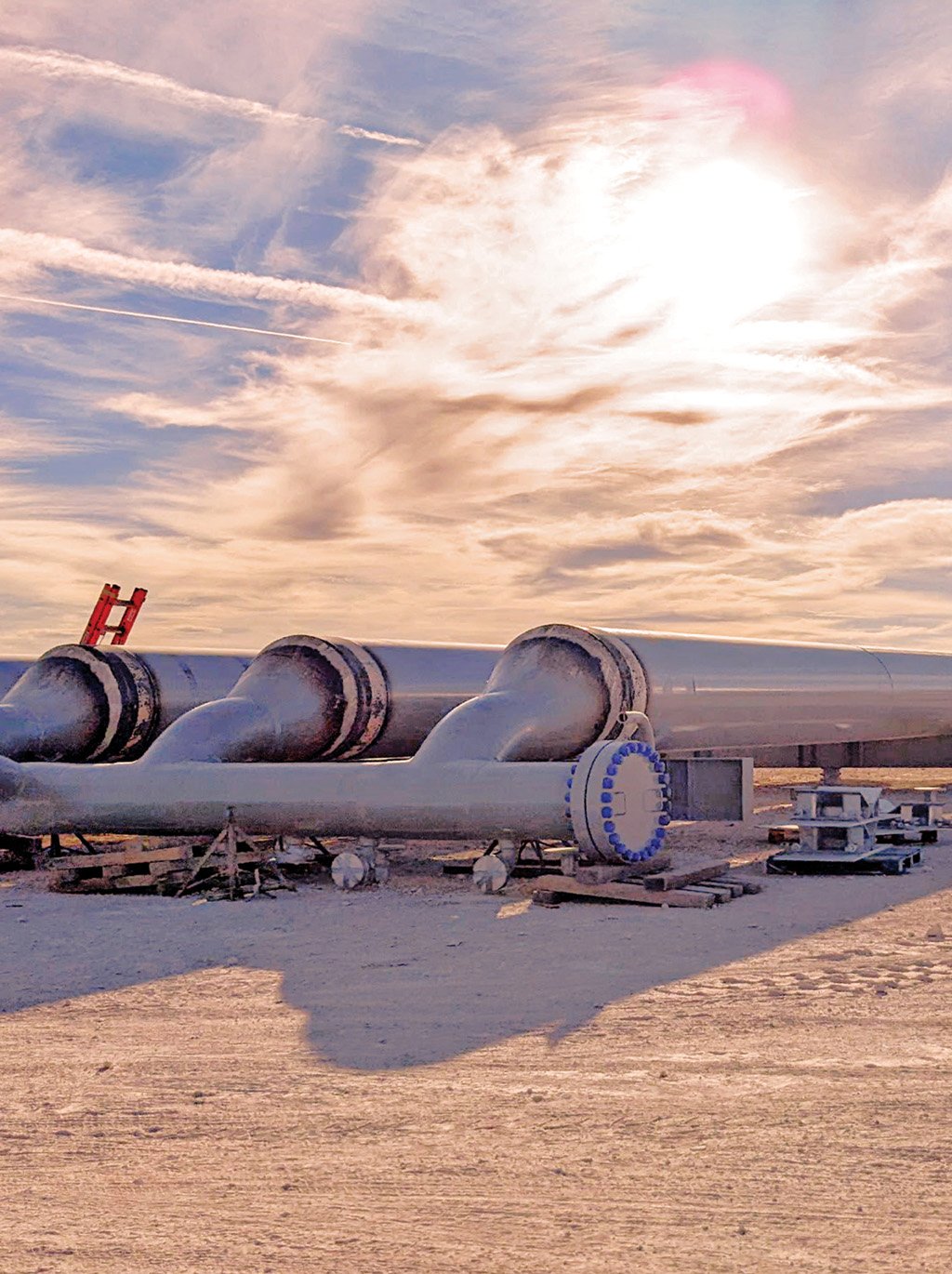

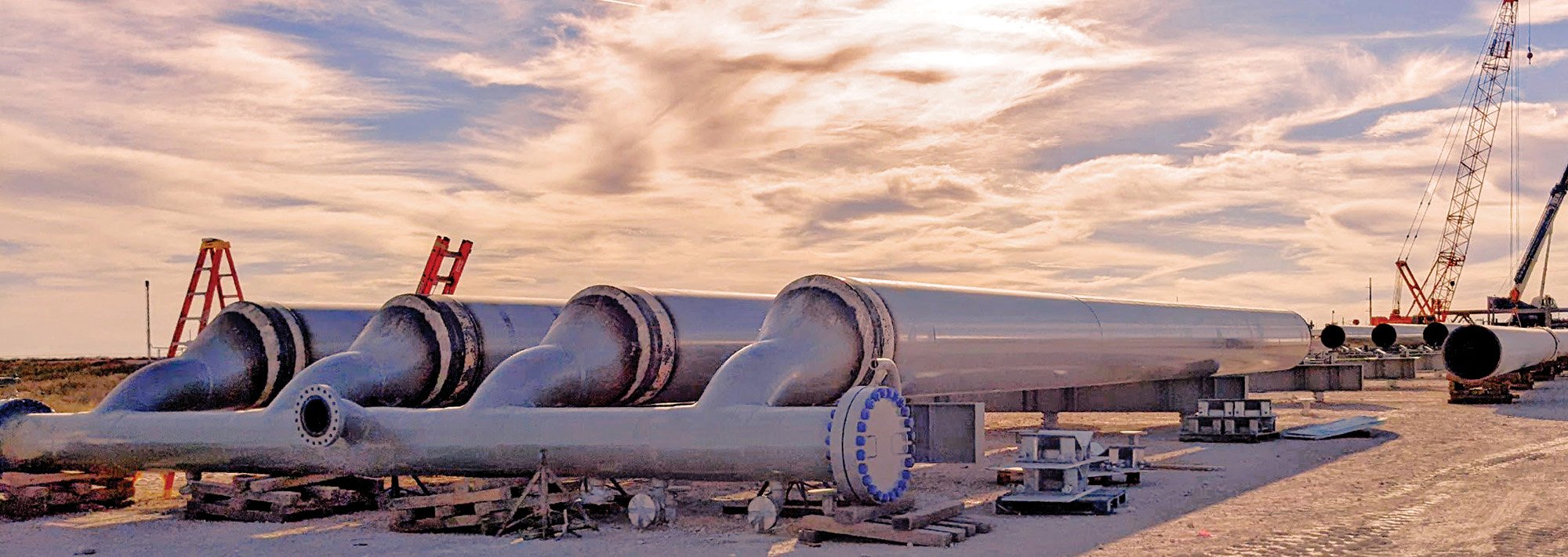

Weldfit 's multiple outlet extruded headers are designed to
meet the customer's choice of ASME B31 or ASTM codes. Versatile, compact, and reliable these units have applications in
meter headers, pulsation dampeners, strainer and valve bodies, heater headers, air grid components, scraper traps, slug
catcher components.
|
|
Weldfit 's Choke & Kill manifolds are manufactured to meet specific
operational demands for onshore or offshore applications. Cement manifolds with ratings to 20,000 psi are designed and
assembled to API or ASME B31.3 codes. Standpipes, single or dual, 2,000 psi through 7,500 psi with forged or long sweep
fittings can be supplied. We can also provide ABS, DNV, or Lloyds certification were service conditions apply.
|
|
Weldfit 's Specialty Forged Fittings can be designed and manufactured to
API or ASTM codes in various materials. Double flued heads, baffle plates, flued and flanged heads, pipe bulkheads,
through nozzle inserts, and special pressure parts can be designed to customer specifications.
|
|
|
Flow Tees
|
SureLoc
|
API Forged Fittings
|
Weldfit 's Flow Tees or Sphere Tees are designed and manufactured to
client specifications. Optimum sizing is provided using high quality extruded body and forged ends. Guide tubes are
slotted to allow for the maximum allowable fluid flow and restraints to contain scrapers, pigs, and spheres.
|
|
Weldfit 's SureLoc product line includes SureLoc Flange,
SureLoc Blind Plug, SureLoc Guide Bar Plug, and SureLoc Tee. We have also included SureTap Tee, SureTee, and
Sure-Sig pig passage indicators.
|
|
Weldfit 's API 6A forged fittings can be designed and manufactured to
API or ASTM codes. Inlaid stainless ring grooves are available. Butt weld crosses, elbows, and tees can be designed to
customer specifications.
|
|
